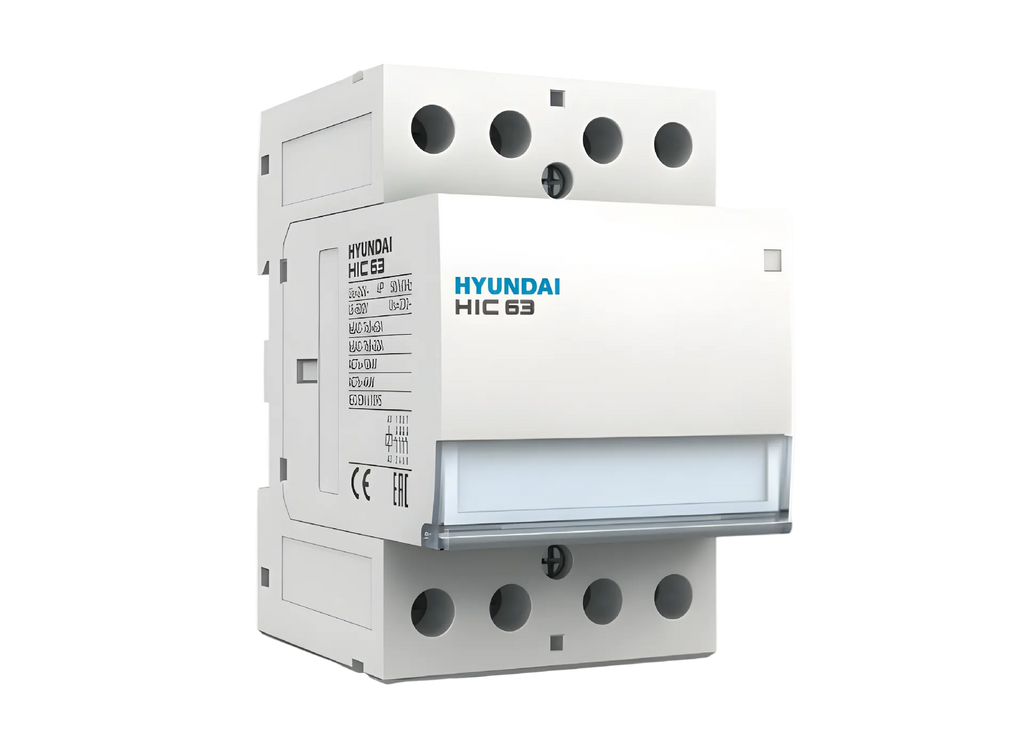

Hyundai HIC63 Installation Contactor 63 A, 4-pole

The Hyundai HIC63 is a low-noise installation contactor for the reliable control of high-power electrical loads in commercial, residential, and functional buildings. With a 63 A rated current, four poles, and 230 V control voltage, it is suitable for applications including building automation, lighting, ventilation, heating, pumps, and fire protection systems.

The 4NO version switches four current paths simultaneously. The contactor is mounted on a 35 mm DIN rail and operates very quietly, making it suitable for noise-sensitive building areas.

Advantages

63 A rated current for AC-1 and AC-7a
Four normally open contacts: 4NO+0NC
Low-noise switching operation for residential and commercial areas
Specific version with 230 V control voltage
For building automation, lighting, ventilation, heating, and pumps
Mounting on 35 mm DIN rail
Tested according to IEC/EN 61095

Technical Specifications

Model	HIC63
Reference standard	IEC/EN 61095
Number of poles	4P
Contact configuration	4NO+0NC
Rated current (In)	63 A
Rated voltage (Ue)	400 V
Rated insulation voltage (Ui)	500 V
Rated control voltage (Uc)	230 V
Rated frequency	50/60 Hz
Utilization category	AC-1, AC-7a, AC-7b
Electrical service life	100,000 switching cycles
Mechanical service life	1,000,000 switching cycles
Rated power 4NO / 3NO+1NC / 4NC	40 kW (AC-7a) / 14 kW (AC-7b)
Rated power 2NO+2NC	12 kW (AC-7a) / 4 kW (AC-7b)
Rated operational current (Ie)	63 A (AC-1/AC-7a) / 32 A (AC-7b)
Operating temperature	−40 °C to +55 °C
Humidity	90 % at 20 °C / 50 % at 40 °C
Connection cross-section (max.)	25 mm²
Tightening torque	2.5 Nm
Protection class	IP20
Weight	340.4 g
Dimensions (H × D × W)	54 × 85 × 62.5 mm
Mounting	Clip-on mounting on DIN rail, 35 × 7.5 mm
Busbar connection top/bottom	Pin type

Hersteller
HD Hyundai Electric Co., Ltd.
477, Bundangsuseo-ro, Bundang-gu
13553 Seongnam-si, Gyeonggi-do
Republik Korea

Importeur und verantwortliche Person in der EU
OAM GmbH
Rotenturmstraße 16–18 / 1 / 6. OG
1010 Wien, Österreich
office@hdeon.com

Produktkennzeichnung
Marke: HYUNDAI
Artikelnummer: HIC6340NSX230
CE-gekennzeichnet

Sicherheitshinweise

Montage, Anschluss und Inbetriebnahme nur durch eine Elektrofachkraft unter Beachtung der geltenden Errichtungsbestimmungen (z. B. ÖVE/ÖNORM E 8101, DIN VDE 0100).
Vor allen Arbeiten die Anlage spannungsfrei schalten, gegen Wiedereinschalten sichern und die Spannungsfreiheit feststellen.
Nur innerhalb der angegebenen technischen Daten (Nennspannung, Nennstrom, Schaltvermögen) einsetzen.
Beschädigte Geräte nicht installieren oder weiter betreiben. Das Gerät nicht öffnen oder verändern.
Montage- und Bedienungsanleitung des Herstellers beachten und aufbewahren.
